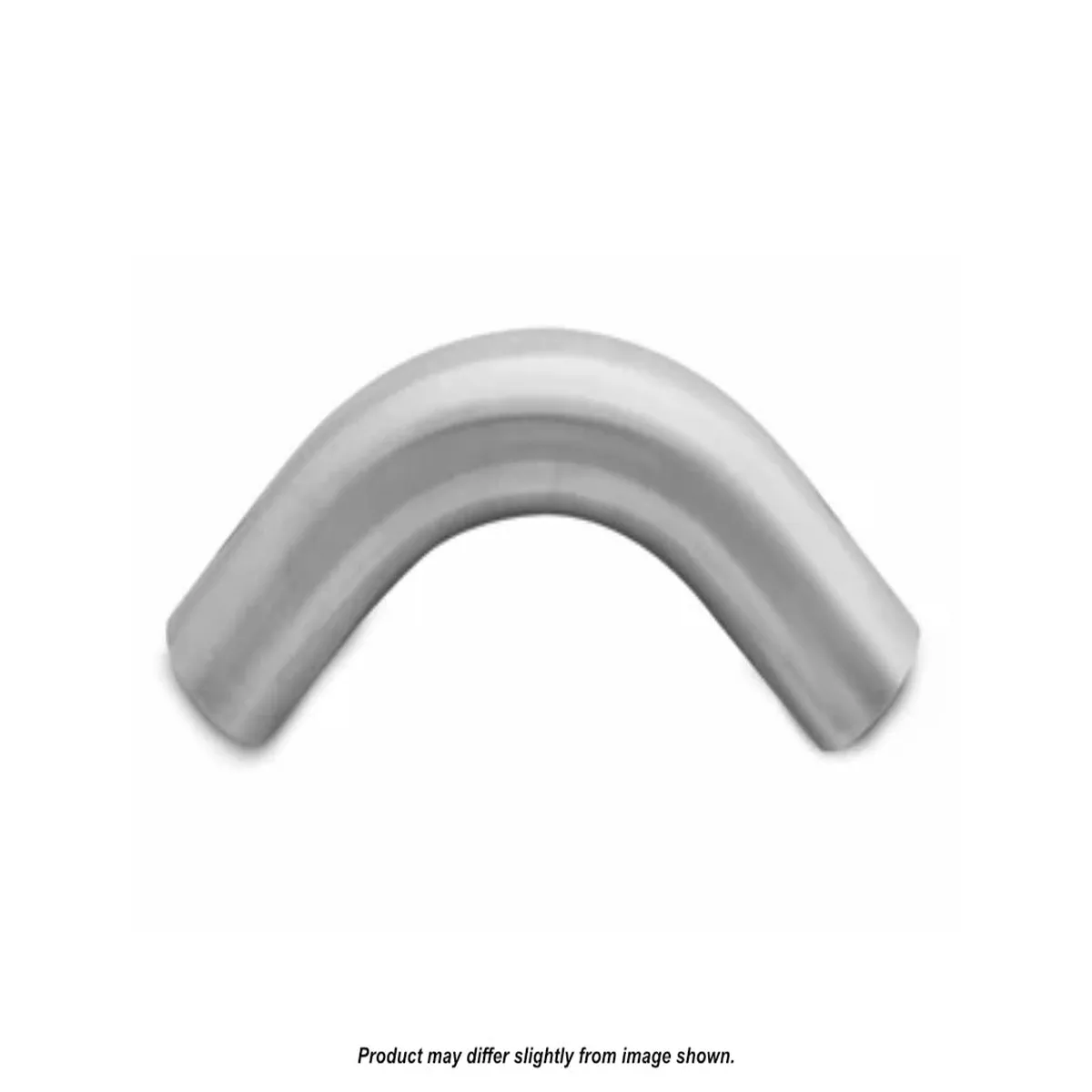

Ultibend 90 Stainless Steel Bend – Long Radius
Includes:1x 90 Bend
Details:– Material: Stainless Steel– Grade: 304
Tolerances:– Diameter – 0.5% of OD– Square –Target <0.2mm, Max 0.4mm– Dim A – 1mm -0mm– Dim B/C – Nominal– Radius – Nominal
Measurements:2″ – A= 190.8mm B=63.8mm C=165.4mm R=101.6mm2.5″ – A= 235.2mm B=89.1mm C=203.5mm R=114.3mm3″ – A= 295.9mm B=118.1mm C=257.8mm R=139.7mm4″ – A= 328.6mm B=125.4mm C=277.8mm R=152.4mm
Please Note: Use drop down menu to select required size.
