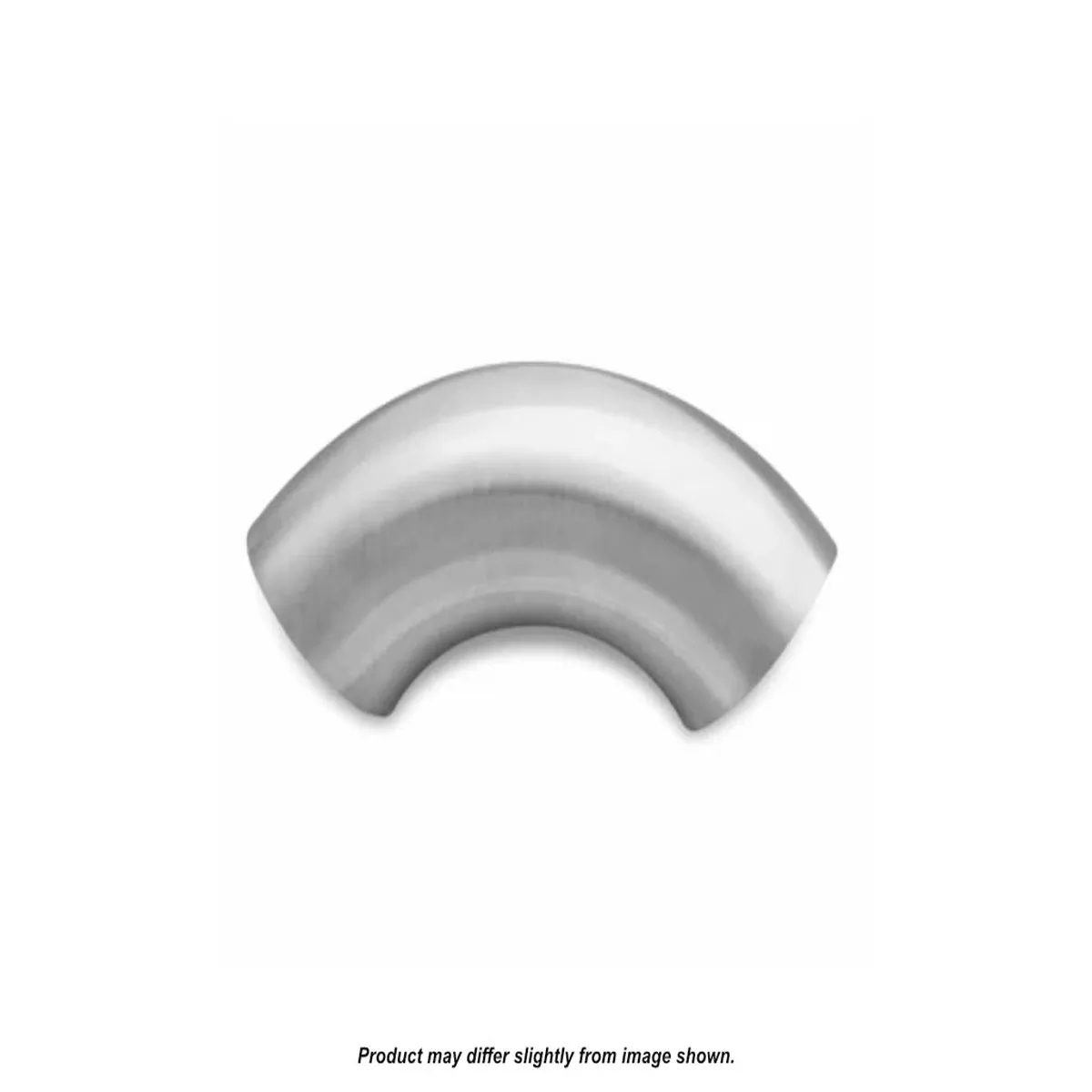

Ultibend 90 Stainless Steel Bend – Short Radius
Includes:1x 90 Bend
Details:– Material: Stainless Steel– Grade: 304
Tolerances:– Diameter – 0.5% of OD– Square -Target <0.2mm, Max 0.4mm– Dim A – 1mm -0mm– Dim B/C – Nominal– Radius – Nominal
Measurements:2″ – A= 101.6mm B=7.6mm C=76.2mm R=68.6mm2.5″ – A= 127mm B=9.5mm C=95.3mm R=85.7mm3″ – A= 152.4mm B=11.4mm C=114.3mm R=102.9mm4″ – A= 203.2mm B=15.2mm C=152.4mm R=137.2mm
Please Note: Use drop down menu to select required size.
