Overview

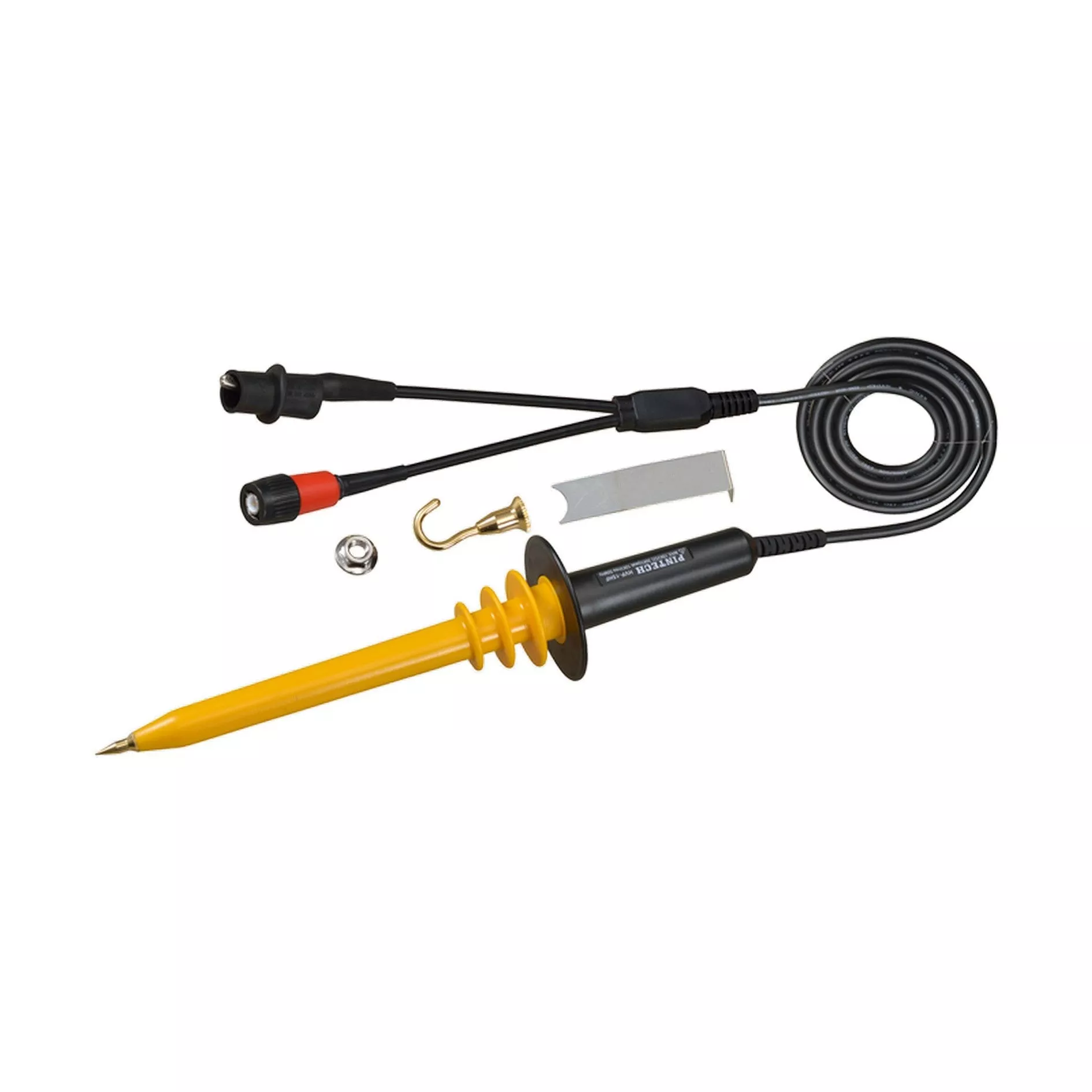

40MHz (-3dB) high-voltage passive probe (1000:1 attenuation) for measuring power supply rails, inverters, and high-voltage circuits up to several kV. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- 40MHz (-3dB) Bandwidth Captures signal content up to 40MHz for accurate waveform measurement.
- 1000:1 Attenuation Attenuation ratio suited to the probe measurement range.
- DC 15kVrms/AC 10kV Maximum Input Voltage Rated input voltage for safe operation.
- Standard BNC Connection Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| Weight | 250 g |
| Dimensions | 80mm340mm |
| Storage Temperature | -20 C – 70 C |
| Bandwidth | 40 MHz |
| Probe Attenuation | 1000:1 |
| Probe Max Voltage | DC 10 kV / AC 7kVrms |
| Rise Time | 8.8ns |
| Connector Type | BNC |
| Cable Length | 200cm |
| Input Capacitance | 3.0 pF |
| Input Resistance | 100 M |
| Compensation Range | 5 pF-50 pF |
| Operating Temperature | 0 C – 50 C |
Documentation
- UT-P21 User Manual
