Overview

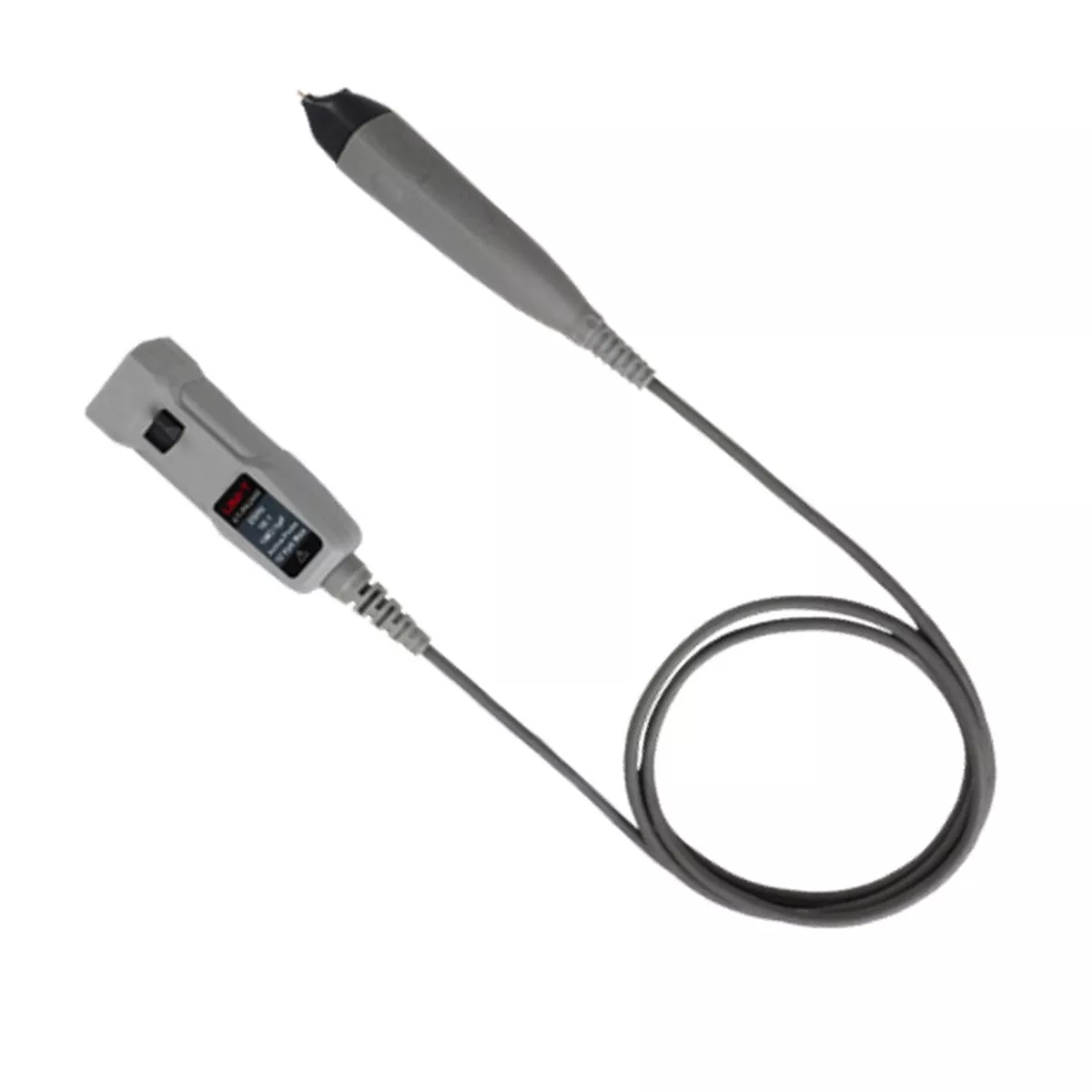

1 GHz active single-ended oscilloscope probe with 1.3 pF input capacitance and 4V dynamic range. Designed for high-speed digital and RF signal integrity measurements on UNI-T MSO/UPO oscilloscopes. Connects to UNI-T oscilloscopes and other oscilloscopes via BNC.
Key Features
- 1GHz Bandwidth Captures signal content up to 1GHz for accurate waveform measurement.
- 10:1 Attenuation Divides the input signal for measuring higher-voltage circuits.
- 4 V Maximum Input Voltage Rated input voltage for safe operation.
- Standard BNC Connection Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| Bandwidth | 1 GHz |
| Probe Attenuation | 10:1 |
| Probe Max Voltage | 4 V |
