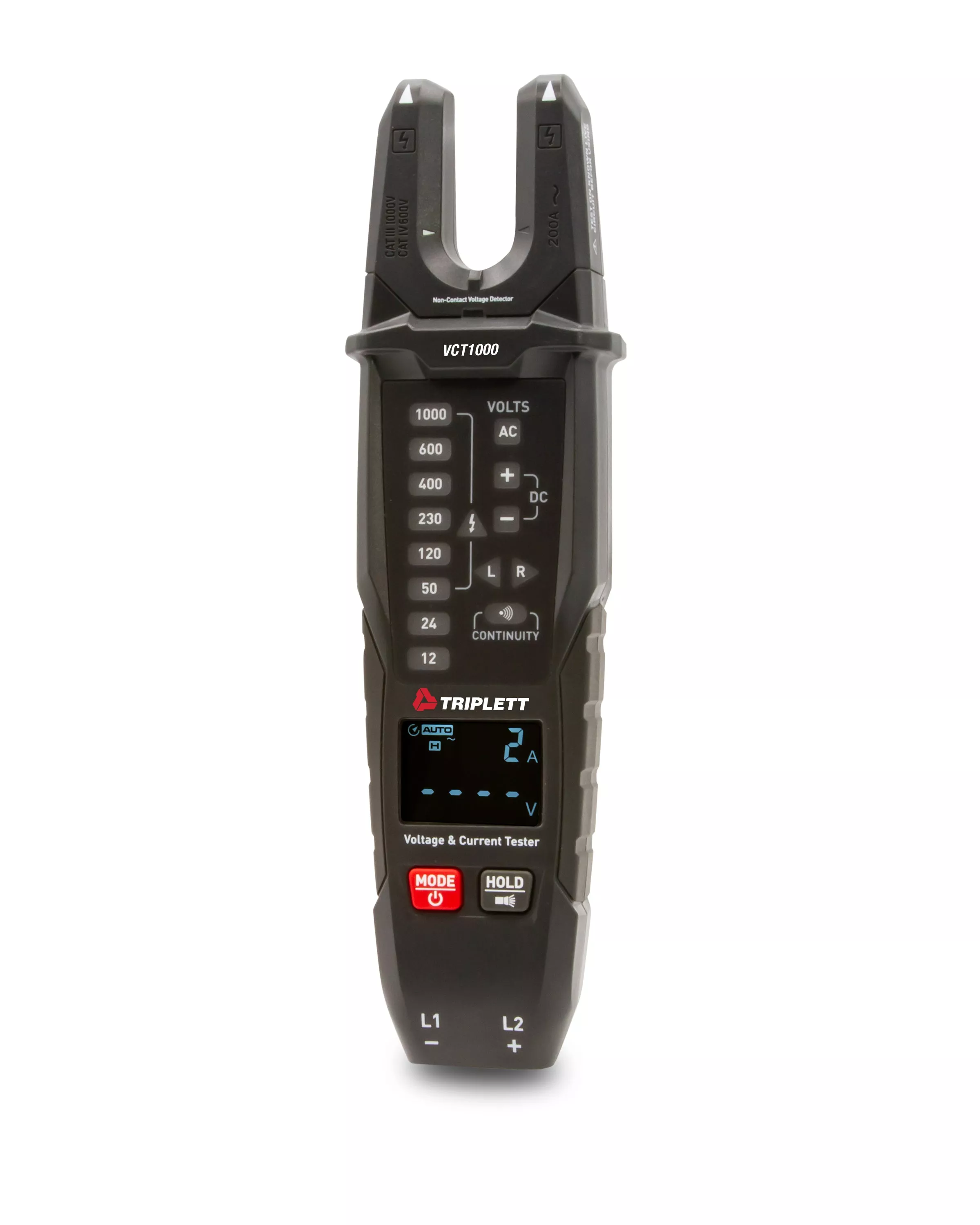

The Triplett Model VCT1000 Voltage and Current Tester can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. Read More>
DESCRIPTION
The Triplett Model VCT1000 Voltage and Current Tester can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. This saves time and the circuit will not be damaged. Additional measurements include AC/DC Voltage, Resistance, and Continuity. Measurements can read on the 2000 count, EBTN (Enhanced Black Twisted Nematic) display for easy viewing in any lighting condition. Features include: LED AC/DC Voltage indicators with polarity, a Rotary Field Indicator that checks for correct 3-phase wire sequence (L1, L2, L3) and rotation direction (R, L), a built-in NCV Detector with LED, and low battery indicator. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. Includes 2 AA batteries, test leads and pouch case. 1-year warranty.
CATEGORY: CLAMP METER
Features
Specifications
| VCT1000 | |
| Display | EBTN (2000 count) |
| AC/DC Voltage Range | 6 to 1000V |
| Accuracy | 3% |
| Resolution | 1V |
| LED Voltage Indicators | 12, 24, 50, 120, 230, 400, 690, 1000V AC/DC |
| AC Bandwidth | 40 to 400Hz |
| AC Current | 200A |
| ACA Accuracy | 3.5% |
| AC Bandwidth | 45 to 65Hz |
| Resistance | 0 to 1999 |
| Continuity | 0 to 400k |
| Rotary Field Indication | Phase Sequence and Direction |
| Bandwidth | 50/60Hz |
| NCV Detector | 100 to 1000V |
| Power | (2) AA batteries |
| Safety Category | CAT IV-600V |
| Dimensions | 9.1 x 2.5 x 1.7″ (230 x 64 x 43mm) |
| Weight | 12oz (340.2g) |
