Designed to offer uncompromising resolution and accuracy, the Pico automotive diagnostic pressure transducer allows quick and accurate pressure analysis of many automotive systems, with:
* three pressure ranges
* a zoom tool
* integrated bleed-off / pressure relief valve
Accurately measure pressure to 500psi
Ultra fast 100S response time
Zoom feature for enhanced analysis capabilities
Rechargeable Li-PO battery
Integrated pressure relief / bleed-off valve
Auto Zeroing
High noise immunity
Temperature compensated
This unit is an auto zeroing pressure transducer designed to offer form and flexibility to automotive diagnostics.
What Lab Scopes does the WPS500X Transducer work with?
The Pico WPS500X Transducer works with all modern automotive and industrial lab scopes, including, but not limited to: PicoScope, Snap-on scopes, Fluke ScopeMeters, Bosch scopes, etc… However, lab scopes with banana inputs require a banana to BNC Male adapter.

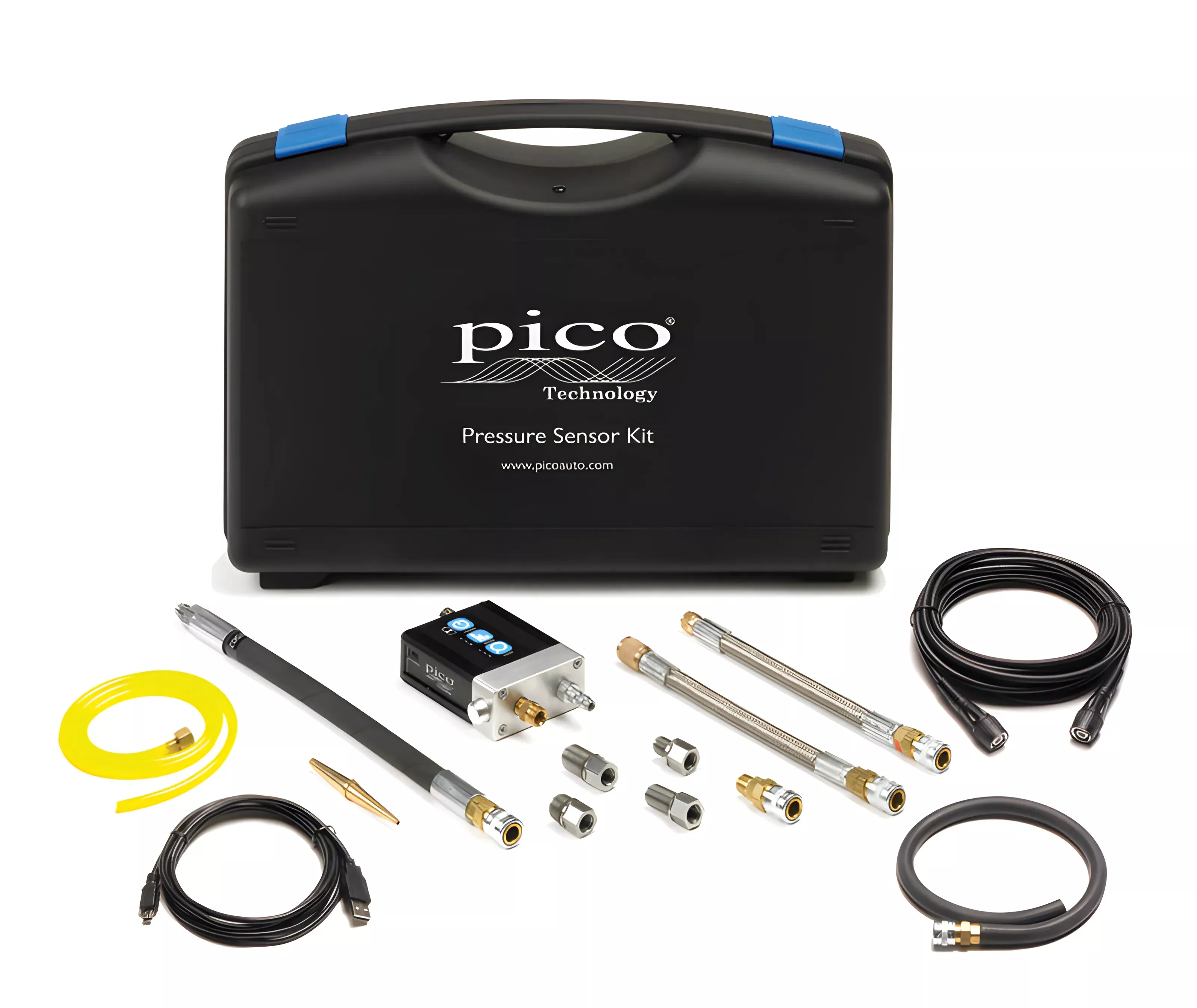

PP939 Kit Contents (PP939 Contents)
WPS500X pressure transducer
Carry case
USB cable
16FT BNC to BNC cable
TA083: Fuel hose with large Schrader valve
TA117: Fuel hose with small Schrader valve
TA085: Vacuum hose
TA086: Bleed hose
TA087: Exhaust adapter
TA142: spare Foster series 2 quick coupler
TA212: Standard compression hose for WPS
TA213: Adaptor M10 short reach
TA216: Adaptor M12 deep reach
TA217: Adaptor M14 short reach
TA218: Adaptor M14 Deep reach
TA129: Universal vacuum adaptor
Additional adapters are included with the Maxi Kit and are available separately:
– M10 (10mm) deep reach
– M16 (16mm) for Ford triton style engines
– M18 (18mm) for older engines
WPS and PicoScope Automotive 7 beta software with Phase Rulers and Cursors…
